MD905

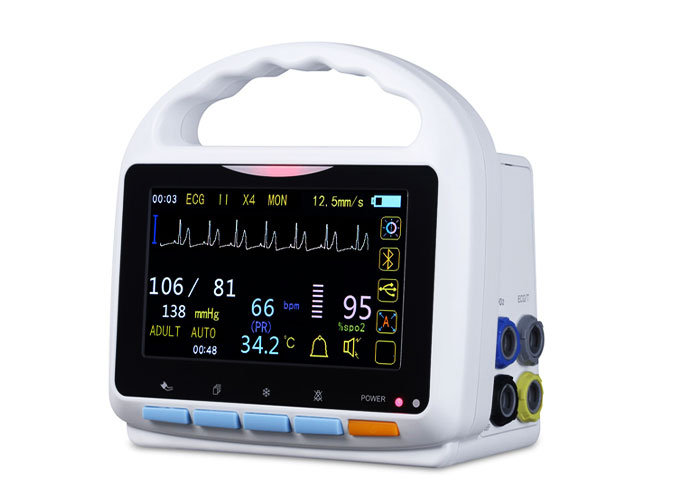

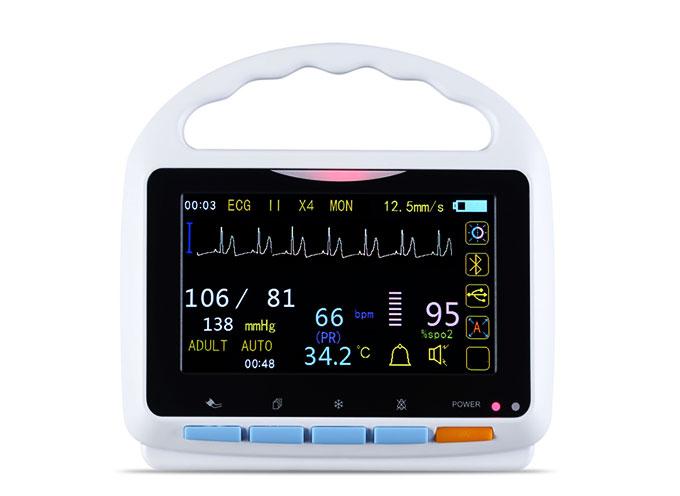

MD905 Patient Monitor Touch screen,5.0 inch color TFT Screen,simple for operating,quickly&accurately measure the data
Build-in rechargeable Li-battery, up to 15 hours running time,
Support AC and DC power;
USB and Bluetooth data upload
Build-in rechargeable Li-battery, up to 15 hours running time,
Support AC and DC power;
USB and Bluetooth data upload
MD905 Patient Monitor Touch screen,5.0 inch color TFT Screen,simple for operating,quickly&accurately measure the data
Build-in rechargeable Li-battery, up to 15 hours running time,
Support AC and DC power;
USB and Bluetooth data upload
Read More Build-in rechargeable Li-battery, up to 15 hours running time,
Support AC and DC power;
USB and Bluetooth data upload
Portable,compact, easy for carrying and operation
Clear and bright colour 5.0 Inch TFT-LCD with touch screen and real time display
Intelligent Measuring of ECG.NIBP.SpO2.PR.PLETH.TEMP
Storage/Review trend data up to 129.6 hours and 3888 groups
Storage ECG waveform,each section is 8 seconds, totally is 30 sections; NIBP,SPO2,pulse rate and TEMP data sheet review up to 100 groups; which can be printed via connecting BlueTooth printer
Utility PC software package for long time monitoring,history data uploading/review/printing/storage.
Uploading history data to PC for reviewing, storage or printing via connecting USB data line or BlueTooth wireless
Audio and visual alarm
Built-in rechargeable Li-ion battery, up to 15-hour power supply
Back light can be adjusted freely
To fulfill Communication function,please install the data viewer software in a PC equipped with a printer, and connect the monitor with the PC by an USB cable or BlueTooth wireless.
Options:
Bluetooth Thermal printer
ECG
Input:3 /5Lead ECG cable standard AAMI cable connector
Lead Selection:I, II, III
Gain Selection:×1, ×2, ×4, ×8
Sweep Speed: 12.5 25 and 50 mm/s
Frequency Response: None filter: 0.05~100Hz (-3dB)
filter: 0.5~40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation
Heart Rate
Measuring Range: 20 bpm~300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm
SpO2
SpO2%
Measuring Range:0%~100%
Resolution:1 %
Accuracy:±2 %(90%~99%)
±3 %(70%~89%)unspecified (0%~69%)
Pulse Rate
Measuring and Alarm Range:20~300bpm
Resolution: 1bpm
Accuracy: ±1bpm
NIBP
Method: Oscillometric
Mode: Manual Auto STAT
Measuring Interval in AUTO Mode: 1 2 3 5 10 15 20 30 45 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 mmHg~300mmHg
Pulse Rate Range: 30 bpm~250bpm
Measurement Rage: Adult 30 mmHg~255mmHg
Pediatric 30 mmHg~160mmHg
Over-pressure Protection:
Adult 300mmHg
Pediatric 220mmHg
Pressure Resolution : 1mmHg
The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope.
The MEAN value measured using this device is equal to that measured using blood pressure measurement device.
Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃~50℃
Accuracy: ±0.1℃
Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours
Power :
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charge(discharge) ≧1000times.
Charge time: 2hours
Work Operation/relative humidity:0~55℃/10~80%RH
Storage Operation/relative humidity:–20~60℃/10~90%RH
Power Supply
AC Power Adaptor
Input: 100~240VAC 50/60Hz 0.7A
Output: DC 5V 1.5A
Battery
Li-ion rechargeable battery 3.7V/7200mAH
Operating Time: 15 hours with full battery capacity.
(Condition: 25℃ NIBP working period is 15 minutes)
Recharge Time: 10 hours.
Environment
Temperature
Working:0℃~45℃
Transport and Storage: -25℃~85℃
Humidity
Working:30% ~85 %
Transport and Storage: 30% ~95 % (no condensation)
Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED
Size: 209mm×104mm×47.5mm
Net Weight: 655g
Monitoring Parameter
Printer (optional)
Type: Thermal micro-printer
Printer Paper: 58 mm thermal paper Paper roll diameter 33mm
Interface: Bluetooth wireless interface
Recording Types: Real-time printing and review data printing
Input:3 /5Lead ECG cable standard AAMI cable connector
Lead Selection:I, II, III
Gain Selection:×1, ×2, ×4, ×8
Sweep Speed: 12.5 25 and 50 mm/s
Frequency Response: None filter: 0.05~100Hz (-3dB)
filter: 0.5~40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation
Heart Rate
Measuring Range: 20 bpm~300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm
SpO2
SpO2%
Measuring Range:0%~100%
Resolution:1 %
Accuracy:±2 %(90%~99%)
±3 %(70%~89%)unspecified (0%~69%)
Pulse Rate
Measuring and Alarm Range:20~300bpm
Resolution: 1bpm
Accuracy: ±1bpm
NIBP
Method: Oscillometric
Mode: Manual Auto STAT
Measuring Interval in AUTO Mode: 1 2 3 5 10 15 20 30 45 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 mmHg~300mmHg
Pulse Rate Range: 30 bpm~250bpm
Measurement Rage: Adult 30 mmHg~255mmHg
Pediatric 30 mmHg~160mmHg
Over-pressure Protection:
Adult 300mmHg
Pediatric 220mmHg
Pressure Resolution : 1mmHg
The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope.
The MEAN value measured using this device is equal to that measured using blood pressure measurement device.
Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃~50℃
Accuracy: ±0.1℃
Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours
Power :
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charge(discharge) ≧1000times.
Charge time: 2hours
Work Operation/relative humidity:0~55℃/10~80%RH
Storage Operation/relative humidity:–20~60℃/10~90%RH
Power Supply
AC Power Adaptor
Input: 100~240VAC 50/60Hz 0.7A
Output: DC 5V 1.5A
Battery
Li-ion rechargeable battery 3.7V/7200mAH
Operating Time: 15 hours with full battery capacity.
(Condition: 25℃ NIBP working period is 15 minutes)
Recharge Time: 10 hours.
Environment
Temperature
Working:0℃~45℃
Transport and Storage: -25℃~85℃
Humidity
Working:30% ~85 %
Transport and Storage: 30% ~95 % (no condensation)
Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED
Size: 209mm×104mm×47.5mm
Net Weight: 655g
Monitoring Parameter
Printer (optional)
Type: Thermal micro-printer
Printer Paper: 58 mm thermal paper Paper roll diameter 33mm
Interface: Bluetooth wireless interface
Recording Types: Real-time printing and review data printing
Standard:
ECG Cable ................... 1Pcs
SpO2 Cable (Adult) ........ 1Pcs
NIBP Cuff (Adult) ............ 1PcsTempreture probe ........... 1Pcs
Power Adapter .............. 1Pcs
Tempreture probe ........... 1Pcs
USB Cable .................... 1Pcs
Cleaning Cloth ................ 1Pcs
Options:
ECG Cable (3 Leads)
ECG Alligator Clips (Metal)
SpO2 Cable (Adult hard shell sensor)
SpO2 Cable (Adult Soft shell sensor)
SpO2 Cable (Neonatal soft sensor)
NIBP Cuff (infant 8 - 14 cm 5/Bag)ECG Alligator Clips (Metal)
SpO2 Cable (Adult hard shell sensor)
SpO2 Cable (Adult Soft shell sensor)
SpO2 Cable (Neonatal soft sensor)
Paper Role
Thermal Printer
Thermal Printer
