SpO2 70%~100% ±2%
0%~69% undefined
PR ±2bpm or ±2% (select larger)
Measurement Performance In Weak Filling Condition
pulse-filling ratio : 0.4% SpO2 error ±4%
pulse rate error ±2bpm or ±2% (select larger)
Optical Sensor
Red light wavelength is 660nm 6.65mW
Infrared wavelength is 880nm 6.75mW

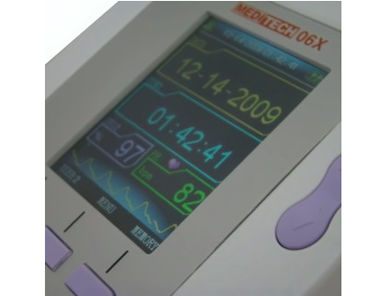

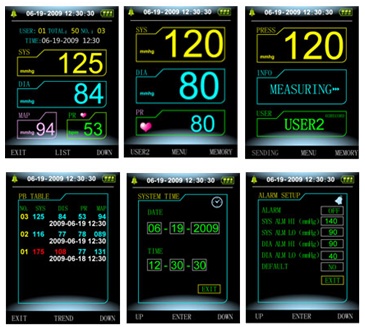

Display 2.8'' color LCD Display
NIBP Specifications
Measurement Method Oscillometric method
Working modes Automatic
Measurement Range Pressure adult 0~290mmHg(0~38.6kPa)
pediatric 0~235mmHg(0~31.3kPa)
neonatal 0~140mmHg(0~18.6kPa)
Pulse: 40~240/min
Inflation adult 160mmHg
pediatric 120mmHg
neonatal 70mmHg
Alarm Range adult mode SYS ALM: 40~270 mmHg
DIA ALM: 10~215 mmHg
pediatric mode SYS ALM: 40~200 mmHg
DIA ALM: 10~150 mmHg
neonatal mode SYS ALM: 40~135 mmHg
DIA ALM: 10~100 mmHg
Overpressure protect adult mode 295±5mmHg
pediatric mode 240±5mmHg
neonatal mode 145±5mmHg
Resolution
Pressure 1mmHg
Measurement Accuracy
Cuff Pressure Accuracy ±3mmHg
Error The BP Value of the device is equivalence with the measurement value of Stethoscopy. The error meets all the conditions in the YY0667-2008.
Operating Temperature/ Humidity +5oC~40 oC . 15%RH~80%RH
Transport and Storage Temperature/Humidity -20oC~+55oC . ≤95%RH
Atmospheric pressure 80kPa~105kPa
Battery 4 "AA" alkaline batteries AC Adapter separately sold
Main Unit Dimensions 130(L)*110(W)*80mm(H)
Main Unit Weight 300gram
