MD905v

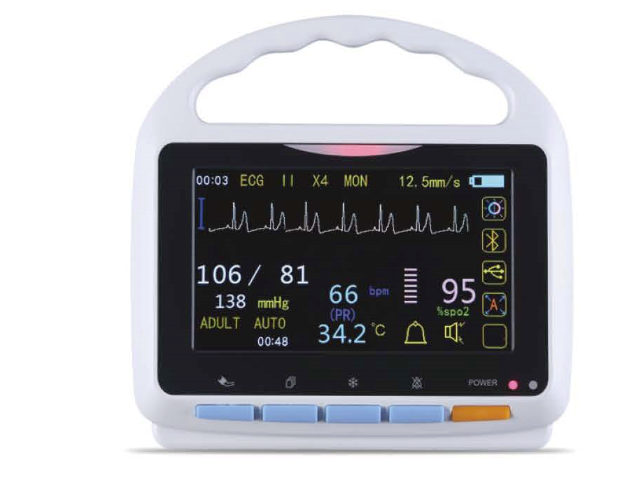

MD905 vet Touch screen patient monitor ,5.0 inch color TFT Screen,simple for operating, quickly&accurately measure the data;
Build-in rechargeable Li-battery, up to 15 hoMD9015urs running time,
Support AC and DC power;
Adjustable audible and visual alarms, and sensor off alarm
USB and Bluetooth data upload
Build-in rechargeable Li-battery, up to 15 hoMD9015urs running time,
Support AC and DC power;
Adjustable audible and visual alarms, and sensor off alarm
USB and Bluetooth data upload
MD905 vet Touch screen patient monitor ,5.0 inch color TFT Screen,simple for operating, quickly&accurately measure the data;
Build-in rechargeable Li-battery, up to 15 hoMD9015urs running time,
Support AC and DC power;
Adjustable audible and visual alarms, and sensor off alarm
USB and Bluetooth data upload
Read More Build-in rechargeable Li-battery, up to 15 hoMD9015urs running time,
Support AC and DC power;
Adjustable audible and visual alarms, and sensor off alarm
USB and Bluetooth data upload
Touch screen 5.1 inch color TFT
Horizontal and vertical display select-able
Big font screen interface is easy to observe
Adjustable brightness
Palm multi-parameter patient monitor with 5 standard parameters: ECG. NIBP. SPO2. PR.TEMP.

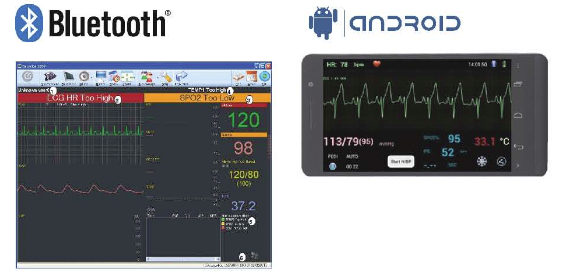

Advanced software is for data downloading and tele-monitoring
Adjustable audible and visual alarms and sensor off alarm;
Long time monitoring and sleeping monitoring;
Storage and review data up to 9999 user ID and 3888 groups via Trend Graph and Trend List.
Built-in Bluetooth modem for PC & Printer connection
USB and Bluetooth data upload;
Build-in rechargeable Li-battery up to 15 hours running time support AC and DC power;
Options:
Bluetooth Thermal printer
Horizontal and vertical display select-able
Big font screen interface is easy to observe
Adjustable brightness
Palm multi-parameter patient monitor with 5 standard parameters: ECG. NIBP. SPO2. PR.TEMP.
Advanced software is for data downloading and tele-monitoring
Adjustable audible and visual alarms and sensor off alarm;
Long time monitoring and sleeping monitoring;
Storage and review data up to 9999 user ID and 3888 groups via Trend Graph and Trend List.
Built-in Bluetooth modem for PC & Printer connection
USB and Bluetooth data upload;
Build-in rechargeable Li-battery up to 15 hours running time support AC and DC power;
Options:
Bluetooth Thermal printer
Display Specification
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED
Size: 209mm×104mm×47.5mm
Net Weight: 655g
Monitoring Parameter
ECG
Input:3- lead ECG cable standard AAMI cable connector
Lead Selection:I, II, III
Gain Selection:×1, ×2, ×4, ×8
Sweep Speed: 12.5 25 and 50 mm/s
Frequency Response: None filter: 0.05~100Hz (-3dB) filter: 0.5~40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation
Heart Rate
Measuring Range: 20 bpm~300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm
SpO2
SpO2%
Measuring Range:0%~100%
Resolution:1 %
Accuracy:±2 %(90%~99%) ±3 %(70%~89%) unspecified (0%~69%)
Pulse Rate
Measuring and Alarm Range:20~300bpm
Resolution: 1bpm
Accuracy: ±1bpm
NIBP
Method: Oscillometric
Mode: Manual Auto STAT
Measuring Interval in AUTO Mode: 1 2 3 5 10 15 20 30 45 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 mmHg~300mmHg
Pulse Rate Range:30 bpm~250bpm
Measurement Rage:
Big animal 30 mmHg~255mmHg
Small animal 30 mmHg~160mmHg
Over-pressure Protection:
Big animal 300mmHg
Small animal 220mmHg
Pressure Resolution : 1mmHg
The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope.
The MEAN value measured using this device is equal to that measured using blood pressure measurement device.
Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃~50℃
Accuracy: ±0.1℃
Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours
Power :
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charge(discharge) ≧1000times.
Charge time: 2hours
Work Operation/relative humidity:0~55℃/10~80%RH
Storage Operation/relative humidity:–20~60℃/10~90%RH
Power Supply
AC Power Adaptor
Input: 100~240VAC 50/60Hz 0.7A
Output: DC 5V 1.5A
Battery
Li-ion rechargeable battery 3.7V/7200mAH
Operating Time: 15 hours with full battery capacity.
(Condition: 25℃ NIBP working period is 15 minutes)
Recharge Time: 10 hours.
Environment
Temperature
Working:0℃~45℃
Transport and Storage: -25℃~85℃
Humidity
Working:30% ~85 %
Transport and Storage: 30% ~95 % (no condensation)
Printer (optional)
Type: Thermal micro-printer
Printer Paper: 58 mm thermal paper Paper roll diameter 33mm
Interface: Bluetooth wireless interface
Recording Types: Real-time printing and review data printing
Measurement Display: color TFT- LCD/touch screen
Power Supply Indicator: Dual-color LED (red/green)
Charging indicator: A green LED
Size: 209mm×104mm×47.5mm
Net Weight: 655g
Monitoring Parameter
ECG
Input:3- lead ECG cable standard AAMI cable connector
Lead Selection:I, II, III
Gain Selection:×1, ×2, ×4, ×8
Sweep Speed: 12.5 25 and 50 mm/s
Frequency Response: None filter: 0.05~100Hz (-3dB) filter: 0.5~40Hz (-3dB)
Calibration Signal: 1mV square wave
Protection: Against electrosurgical interference and defibrillation
Heart Rate
Measuring Range: 20 bpm~300 bpm
Renew Time: 1 time per beat
Accuracy: ±1 bpm
Alarm Mode: Audible and visual alarm
SpO2
SpO2%
Measuring Range:0%~100%
Resolution:1 %
Accuracy:±2 %(90%~99%) ±3 %(70%~89%) unspecified (0%~69%)
Pulse Rate
Measuring and Alarm Range:20~300bpm
Resolution: 1bpm
Accuracy: ±1bpm
NIBP
Method: Oscillometric
Mode: Manual Auto STAT
Measuring Interval in AUTO Mode: 1 2 3 5 10 15 20 30 45 60 (min)
Measuring Period in STAT Mode: 5 min
Cuff Pressure Range:0 mmHg~300mmHg
Pulse Rate Range:30 bpm~250bpm
Measurement Rage:
Big animal 30 mmHg~255mmHg
Small animal 30 mmHg~160mmHg
Over-pressure Protection:
Big animal 300mmHg
Small animal 220mmHg
Pressure Resolution : 1mmHg
The SYSTOLIC and DIASTOLIC values measured using this device shall be equal to those measured by trained medical personnel using cuff and stethoscope.
The MEAN value measured using this device is equal to that measured using blood pressure measurement device.
Temperature
Input: Body surface thermal-sensitive resistor temperature sensor
Measuring Range: 0℃~50℃
Accuracy: ±0.1℃
Storage and Review
Maximum Data Quantity: 3888 groups
Maximum Trend Time: Continuous 129.6 hours
Power :
Rechargeable battery 1700mAh~2000mAh.7.2V.
Charge(discharge) ≧1000times.
Charge time: 2hours
Work Operation/relative humidity:0~55℃/10~80%RH
Storage Operation/relative humidity:–20~60℃/10~90%RH
Power Supply
AC Power Adaptor
Input: 100~240VAC 50/60Hz 0.7A
Output: DC 5V 1.5A
Battery
Li-ion rechargeable battery 3.7V/7200mAH
Operating Time: 15 hours with full battery capacity.
(Condition: 25℃ NIBP working period is 15 minutes)
Recharge Time: 10 hours.
Environment
Temperature
Working:0℃~45℃
Transport and Storage: -25℃~85℃
Humidity
Working:30% ~85 %
Transport and Storage: 30% ~95 % (no condensation)
Printer (optional)
Type: Thermal micro-printer
Printer Paper: 58 mm thermal paper Paper roll diameter 33mm
Interface: Bluetooth wireless interface
Recording Types: Real-time printing and review data printing
Standard:
ECG Cable (5 Leads) ................ 1Pcs
ECG Alligator Clips (Metal) ...... 5Pcs
SpO2 Cable (multi-site Y type) ...1Pcs
TEMP Probe (Pointy) ................ 1Pcs
NIBP Cuff (26 - 35 cm 5/Bag) .... 1Pcs
NIBP Tube(150cm) ................... 1PcsGround Cable .......................... 1Pcs
Power Adoptor ...........................1Pcs
Cleaning Cloth .......................... 1Pcs
Options:
NIBP Cuff ( 8 - 14 cm 5/Bag)
Paper Role
Bluetooth Thermal printer
Patient Monitor Wall mounts (3 Models)
Patient Monitor Trolley (5 Models)
Bluetooth Thermal printer
Patient Monitor Wall mounts (3 Models)
Patient Monitor Trolley (5 Models)
