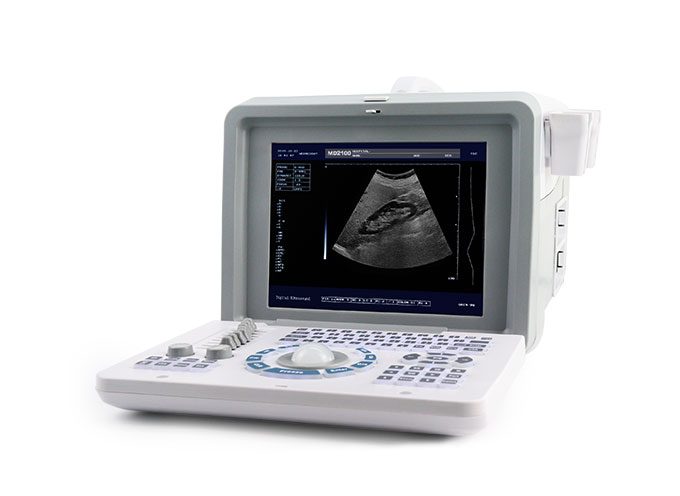

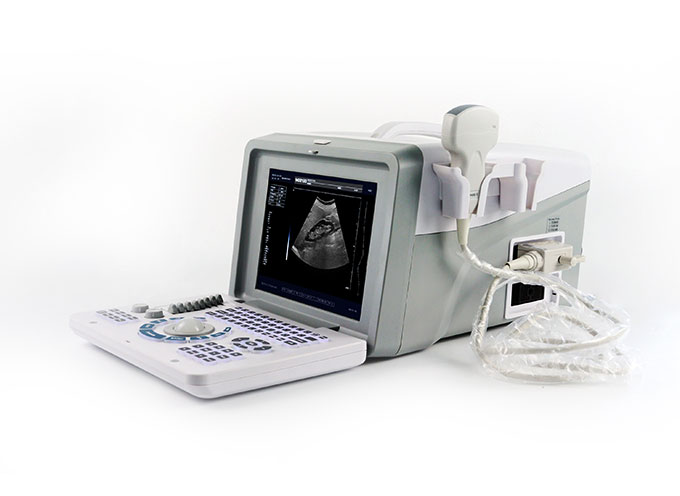

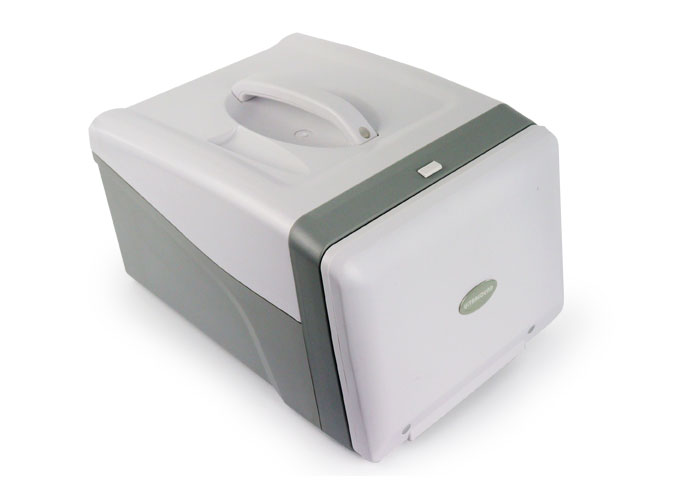

Portable B/W Ultrasound Scanner .B.2B.B/M.4B display

Dolphi® pro

Dolphi® pro Portable B/W Ultrasound Scanner

High Cost-effective

Crystal-clear /image

Multi-frequency Probes

Digital /image Storage

8 TGC controls

Cineloop

B.2B.B/M.4B display

USB port (option)

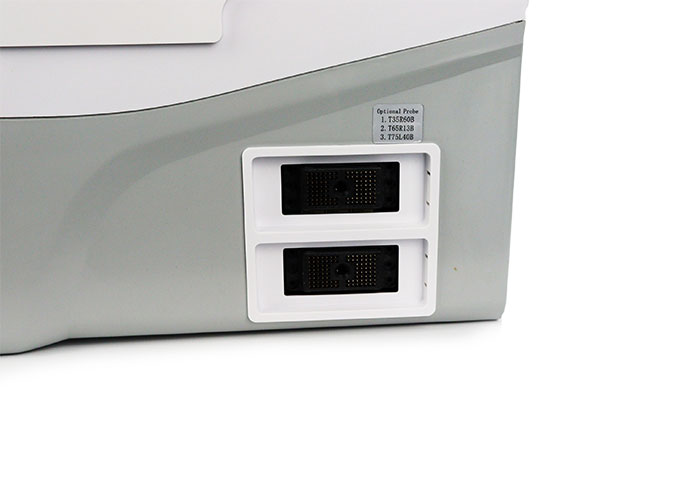

Two probe sockets

10 inch screen

SVGA and PAL video output

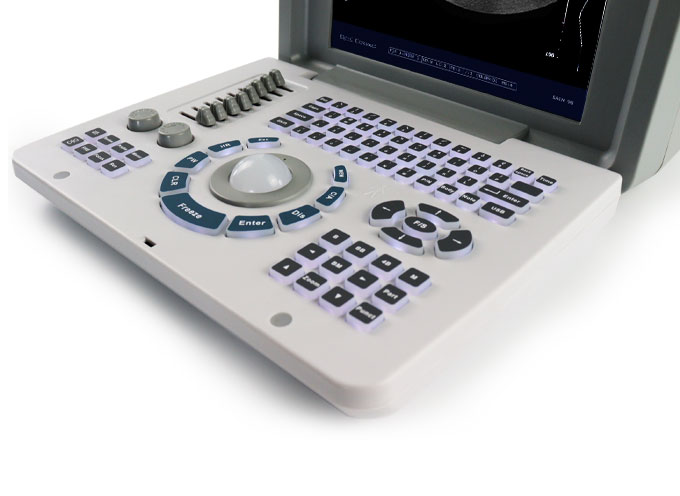

Light key

Read Less

Dolphi® pro Portable B/W Ultrasound Scanner

High Cost-effective

Crystal-clear /image

Multi-frequency Probes

Digital /image Storage

8 TGC controls

Cineloop

B.2B.B/M.4B display

USB port (option)

Two probe sockets

10 inch screen

SVGA and PAL video output

Light key

$(function () { HILLINTON.ProductDescriptionBlock.init( "#main_0_top_0_lblReadLess", "#main_0_top_0_lnkReadMore", "#main_0_top_0_divBodyBlock", "#main_0_top_0_divExpandedDetail", "#main_0_top_0_divProductDescription", "False"); });

CE marked

Made by ABS

Not made with natural rubber latex

var player; var modVP; function myTemplateLoaded(experienceID) { player = brightcove.api.getExperience(experienceID); modVP = player.getModule(brightcove.api.modules.APIModules.VIDEO_PLAYER); } function onTemplateReady(evt) { } function onMediaComplete(videoid, title, desc) { $('.video_title').empty(); $('.video_title').html(title); $('.video_para').empty(); $('.video_para').html(desc); modVP.loadVideoByID(videoid); }

Portable 2D B/W Ultrasound scanner

10 inch CRT Screen with clear image quality

Advanced transducer technology

Digital Beam Forming

Multiple imaging modes

Patented innovative design

Real-time dynamic aperture

2 USB port upgrated and expandable printer function

SVGA video output and PAL video output easy connect printer

Monitor: 10 inch SVGA HR display. Grey scale: 256 levels.
Display mode: B, B/B, 4B, B+M, and M
Magnification: ×0.8, ×1.0, ×1.2 (Depth hoist display), and × 1.5，×1 .8, ×2.0 (Depth hoist display)
Dynamic range: 64~96dB adjustable
Focusing: Four sections of dynamic electronic focusing may be elected.
Pre-processes: changeable aperture, dynamic changes of the marks, dynamic filter and edge enhancement, etc.
Pro-processes: 8 kind of γadjustments,16 kinds of color process, line correlation, frame correlation and linear interpolation, etc.
Frequency conversion: 2.5MHz/3.0MHz/3.5MHz/4.0MHz/6.5MHz/7MHz(Matching 6.5MHZ cavity probe and 7 MHz High-frequency linear array probe).
Calculation: distance, perimeter, area, heart rate, pregnancy week (BPD, GS, CRL, FL, AC) and anticipated delivery date.
Note: name, serial numbers of case history, gender, age, 16 body marks (with probe), full-screen character, real-time clock
Puncture guide: The puncture guide line can be displayed under B mode.
Gain control: The total gain, near field and far field can be adjusted successively.
Image polarity: left/right, black/white and up/down reverse.
Fractionated gain: 2 time of enlargements
Movie memory: 256 pictures can be memorized successively when the real-time is displayed.
Image memory: 128 pictures Permanent storage.
Image review: /images can be reviewed successively and checked one by one.

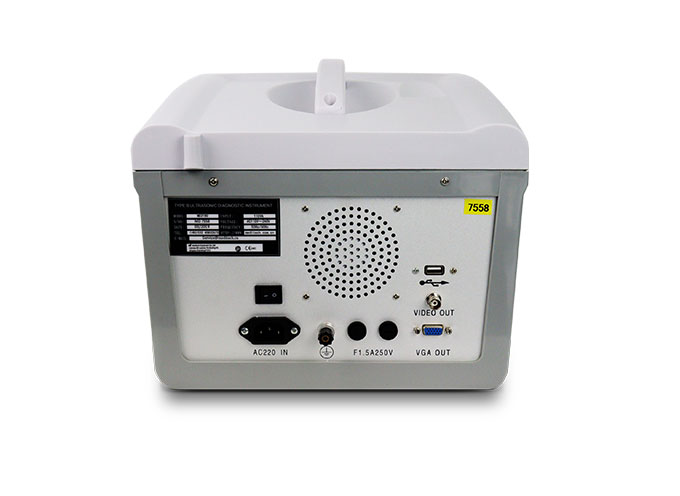

Output interface: 2 groups of SVGA video output may mate with SVGA color monitor. And 2 groups of PAL video output may mate with PAL monitor, video /image recording instrument and /image workshop, etc. 1 group of USB Connection (Optional).

Main Technical Specifications

Probe: 80Array element R60

Probe frequency: 3.5MHz

Scanning depth: ≥180mm

Lateral resolution: ≤2mm(depth≤80mm), ≤3mm(80< depth≤130mm)

Axial: ≤1mm(depth≤80mm), ≤2mm(80< depth≤130mm)

Dead zone： ≤3 mm。

Geometry position precision: lateral≤5%, axial≤5%

Monitor: 10 inch SVGA high resolution monitor（may choose PAL monitor）

Frames cine loops：256

Power supply scope： AC 220V±22V 50Hz

Input: ≤ 300VA

Successive working hours：≥8h

G/W: 10KGs

N/W: 7KGs

Packing size: 480x380x410mm
