Display depth: 240mm
Resolution Power: lateral 2mm, longitudinal 1mm
Probe multi-frequency conversion: 5 segment frequencies
TGC adjustment: 8 TGC adjustments
Gray scale: 256
Scanning and display mode: B, 2B, B/M, M, 4B, ZOOM; Real-time Zoom on B mode; 3D(optional)
Main probe: 3.5 MHz electronic convex array (frequency conversion)
Electronic focus: 4 focus of random combination
Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
Image direction: Up/down/left/right
Pseudo-color function: 8 kinds
Magnification: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
Cine loop: 64, 128, 256, 512, 1024 frames (preset by user)
Body markers: a variety of body markers (30 sorts)

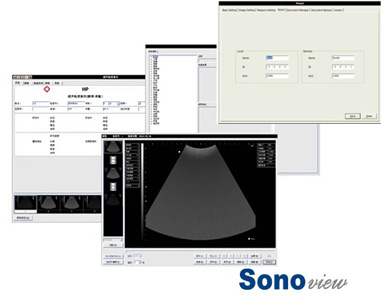

Display information: date, time, medical records number, magnification, measurement value, the body tag, character notes, coefficient of frame correlation, scanning depth, portfolio of probe type, conversion in both English and Chinese, full-screen character edit etc.
Measurement and calculation:
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
DICOM3.0: medical digital imaging and communication, is the industry standards (agreement) of image and data transmission among different kinds of medical devices. Ultrasound devices could receive images and data by DICOM after being connected to PACS.
System preset: System preset includes parameter presets of OB, GYN, vascular, cardiac, urology and small parts, comments, manufacture default settings, system upgrade and maintenance settings.
Storage: large capacity of local storage and USB storage, image and cine loop, Measurement result and report can be stored.
Monitor: 14 " black-and-white SVGA progressive scanning display
Probe connector: 2
Terminal output: VGA, PAL-D video output
Size: 790mm (length) × 660mm (width) × 1070mm (height)
Weight: about 50kg
