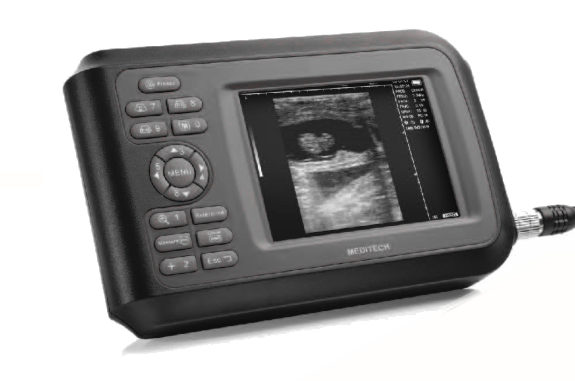

Handheld B-Ultrasound Scanner - SonoR

Sono R

Sono R palm ultrasound scanner ,light weight 1.3KG,clear image quality.
The interchangeable probes offer a wide range of diagnostic applications.
Handheld Ultrasound Scanner scanner for family doctors,clinic and hospital.

Complete software and the high product versatility are available in it.

Read Less

$(function () { HILLINTON.ProductDescriptionBlock.init( "#main_0_top_0_lblReadLess", "#main_0_top_0_lnkReadMore", "#main_0_top_0_divBodyBlock", "#main_0_top_0_divExpandedDetail", "#main_0_top_0_divProductDescription", "False"); });

CE marked

Made by ABS

Not made with natural rubber latex

var player; var modVP; function myTemplateLoaded(experienceID) { player = brightcove.api.getExperience(experienceID); modVP = player.getModule(brightcove.api.modules.APIModules.VIDEO_PLAYER); } function onTemplateReady(evt) { } function onMediaComplete(videoid, title, desc) { $('.video_title').empty(); $('.video_title').html(title); $('.video_para').empty(); $('.video_para').html(desc); modVP.loadVideoByID(videoid); }

Monitor: 5.5 inch TFT color LCD

Full digital beam forming technology

Gama correction, histogram& Scanning angle adjustment

Display Mode: B,B+B,4B,B+M,M

Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times

4 focusing combination selectable

PAL-D output

Gray Scale: 256 levels

256 frames for cine-memory,64 image permanent storage

Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession

15 difference kinds of body marks with difference calipers.

Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.

Characteristic showing in real-time clock, ID, Sex, Age, Focusing Info and Gain (Near, Far, Overall) info.

USB 2.0 For real-time picture uploading to PC

Scanning Method: Convex, Micro-convex, Linear, rectal

Power supply: AC100-240v, 50/60Hz DC: 16.8v rechargeable, Lithium battery Capacity 180 minute continue working

Dimensions: 265mmx46mmx53mm

Weight: 700g.

Related items

Shandong Hillinton Medical Equipment Co.,Ltd is part of Magina Group. Product(s) described may not be licensed or available for sale in all countries. Sonotech, Sonovet, iSonic, FOs2pro, Dolphi, Defi, HeartRec,miniScan,Cardios,SpirOx,iBreath, Hillinton and all corresponding design marks are trademarks of Hillinton. The symbol indicates the trademark is registered. Patent and Trademark Office and certain other countries. All other names and marks mentioned are the trade names, trademarks or service marks of their respective owners. Please see the Instructions for Use for a complete listing of the indications, contraindications, warnings and precautions.


Probe		linear probe 6.5MHz Rectal probe	convex probe	micro-convex probe
Detect Depth(mm)		≥80	≥140	≥90
Resolution (mm)	Lateral	≤1 (Depth≤60)	≤3 (Depth≤80) ≤5 (80＜Depth≤130)	≤3 (Depth≤60)
	Axial	≤1 (Depth≤80)	≤1 (Depth≤80)	≤1 (Depth≤60)
Blind zone(mm)		≤3	≤6	≤5
Geometric position precision	Horizontal	≤5	≤7.5	≤7.5
	Vertical	≤5	≤5	≤5
Monitor size		5 inch
Display mode		B, B+B, B+M, M, 4B
Image gray scale		256
Image storage		64
Cine loop		≥400 frame
Scan depth		70 mm～140 mm
Image flip		Up/down, left/right
Focus position		Adjustable
posture mark		16
Image Process		Histogram, Color encode, GAMA, Image Smoothen
Probe Frequency		Adjustable(3 point each probe)
Frame correlation		Adjustable
Measurement		Distance, circumference, area, volume, heart rate. GA,EDD
Notation		Date, time, name, sex, age, hospital name、Full screen words edit
output report		Measurement
Output		USB2.0, VIDEO(PALD, NTSC)
Battery Continuous work		≥2Hours
