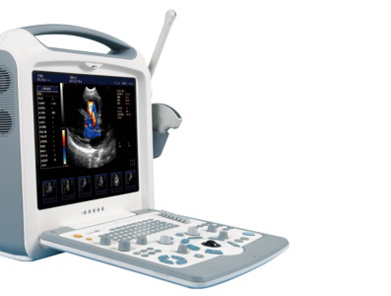

Portable Color Ultrasound Scanner

S8i

S8i Color Portable Ultrasound Scanner
Application: Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc

Image processing: THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composite processing of tissue and blood flow image

Measurement & report packages: GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.

Input/output interface: VGA, network, 4 USB, 2 probe interface, DVD-ROM, SONY print with USB port
It applies cutting-edge technologies; incorporate sophisticated features like real-time 4D, TDI, and TEE scanning into one compact box.

Read Less

$(function () { HILLINTON.ProductDescriptionBlock.init( "#main_0_top_0_lblReadLess", "#main_0_top_0_lnkReadMore", "#main_0_top_0_divBodyBlock", "#main_0_top_0_divExpandedDetail", "#main_0_top_0_divProductDescription", "False"); });

CE marked

Made by ABS

Not made with natural rubber latex

var player; var modVP; function myTemplateLoaded(experienceID) { player = brightcove.api.getExperience(experienceID); modVP = player.getModule(brightcove.api.modules.APIModules.VIDEO_PLAYER); } function onTemplateReady(evt) { } function onMediaComplete(videoid, title, desc) { $('.video_title').empty(); $('.video_title').html(title); $('.video_para').empty(); $('.video_para').html(desc); modVP.loadVideoByID(videoid); }

Displaying mode
B, BB, 4B, BM, M, PW, B/C, B/C/D, B/D,duplex, triplex, part zoom, CFM, CPA

Signal processing:
Full-digital beam forming, dynamic filter, space-time filter, dynamic real time
Receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range≥150, All digital, real-time dynamic focusing,
Dynamic aperture in all fields

Image conversion
Up/down conversion
Left/right conversion

Doppler Sound output volume adjustable
Wall filter adjustable
Base line adjustable
Sampling frame adjustable
Area changeable angle changeable
Spectrum sampling volume adjustable
Spectrum sampling volume angle adjustable
PRF adjustable

Image processing:
Gain control
TGC, PW Gain, CFM gain

General measurement
B mode-distance, circumference, area, volume, ration, angle, %stenosis, histogram
M mode- distance, time, velocity, heart rate

OB packages:
EDD table :GS, BPD, CRL, FL, HL, TAD, LV, OFD, NT, AC, HC, AFI, GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve
OB measuring and calculation report
Uterine measurement (Cervical length, endometrial thickness, uterine volume)

Comes with

Multi frequency convex probe

Multi frequency linear probe

Optional modules

CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module

Smart3D module (for 3 dimensions with 2D standard convex probe)

“iScape View” module

DICOM 3.0 module

Optional probes

Micro-convex array Transvaginal probe

Micro-convex probe

Linear probe

Intdo rectal linear probe

Phased array probe 2P2 (for cardiac applies)

Optional Accessories

Footswitch by USB port

Biopsy guide for convex probe

Biopsy guide for micro-convex probe

Biopsy guide for linear probe

Biopsy guide for micro-convex TV probe

Biopsy guide for intrarectal linear probe
