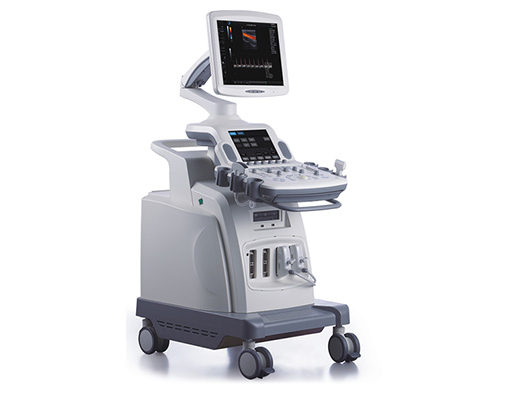

Comes with

Mobile trolley

Multi frequency convex probe

Multi frequency linear probe



Optional modules

CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module

Smart3D module (for 3 dimensions with 2D standard convex probe)

“iScape View” module

DICOM 3.0 module

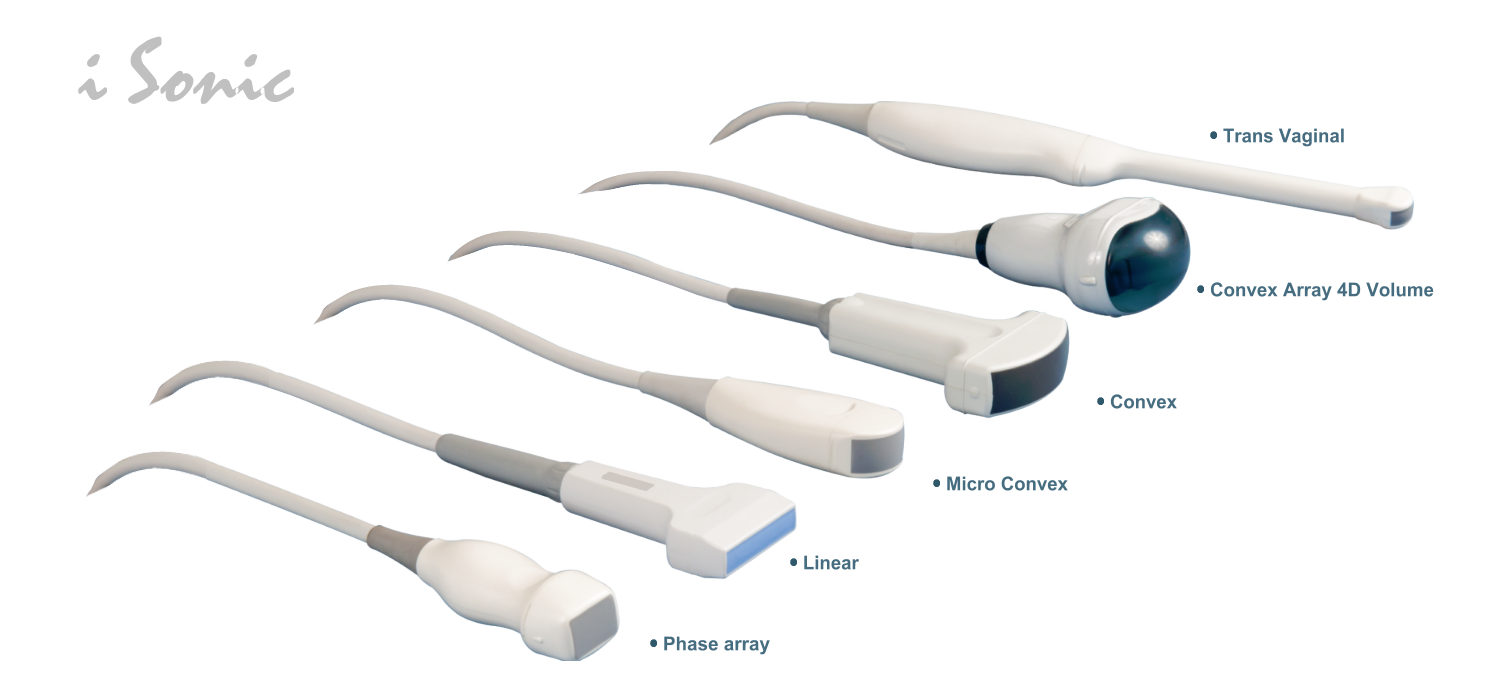

Optional probes

Micro-convex array Transvaginal probe

Micro-convex probe

Linear probe

Intdo rectal linear probe

Phased array probe 2P2 (for cardiac applies)



Optional Accessories

Footswitch by USB port

Biopsy guide for convex probe

Biopsy guide for micro-convex probe

Biopsy guide for linear probe

Biopsy guide for micro-convex TV probe

Biopsy guide for intrarectal linear probe



Software Specifications:

Languages

English, Russian, Spanish, Polish, Turkish, Vietnamese, Simplified Chinese

User Interface Cine Playback Multiple Arrows
Configurable Worksheets
Exam Review :Pictograms (Body Marks) System Setup Menu Programmable Annotations

Max Onscreen Measurements
                        Distance:       27
                        Area:              3

Measurement Tools
B-Mode
Distance:         Point to Point Angle:
Vector Angle Area/Perimeter:     Ellipse, Trace Volume Three – Axis
M-Mode Time Distance Heart Rate
Valve Velocity

Doppler-Mode
                        Velocity
                        Time
                        Heart Rate
                        Acceleration
Common Measurement: PS, ED, TAMAX, RI, PPG Trace:     PS, ED, TAMAX, RI, PPG

Imaging Modes

Overview

B, Dual B, Quad B, M Color, Dual Color
Simultaneous 2D/Color Compound
PW, Duplex/Triplex
CFM, PD, Directional PD, CD Freehand 3D
4D Panoramic

Combined Modes

Dual B, Quad B, B/M, B B/CB/C/PW

B-Mode

Maps:                              17
Focus Count:                  Max. 4
Gain:                               0~255
TGC:                               8
Sliders Dynamic Range: 0~150dB
Depth:                             Max. 30cm
Acoustic Power:             0 ~ (-15) dB
Chroma:                         0~7
Grayscale Levels:          256
Frame Rate:                   Max.100Hz
Max. Line Density:         512
Persistence/ Frame Average: Up to 7
Top/Bottom/Left/Right Reverse
Speckle Reduction

M-Mode

Maps:                                16
Chroma:                            16
Sweep Speed:                   3
Gain:                                  0~255
Distance:                           Point-to-Point
Max Steer Angle:              15°
Diameter Reduction:          Point-to-Point
Heart Rate/Time/Distance/Slope
Side-by-Side/Bottom

Color Mode

Gain:                                  0~255
Color Maps:                       0~6
Doppler Steer Angles:       5 Steps
PRF:                                  1.8 kHz~13.2 kHz
Wall Filter:                          0~3
Max. Steer Angle:              ±10°
Doppler Multi-Frequency:  2MHz~10MHz
Priority:                              0~250
Line Density Max:             256 Lines
Persistence/Frame Average: 0~7
Baseline/Invert/Color ROI/M-Mode

PW Mode

Gain:                                   0~255
Sweep Speed:                    5
Doppler Steer Angles:        5 Steps
Maps:                                  3
Max Steer Angle:               ±10° Spectrum Filter (Edge):     0~3
Audio:                                 0~255
Correction Angle:               80°/-80°
Doppler Multi-Frequency:  2MHz~10MHz
Chroma:                             0~7


Hardware Specifications:

LCD Monitor Size (Diagonal):	15 inch	Transducers	4D Volume Probe Frequency: Central 4.0 MHz
Contrast Ratio: Resolution: Brightness: Color Depth: Rotate Angle: Grey Levels:	800:1 1024×768 pixels 230 cd/m2 24bit ± 90° 256	Convex Array Probe Frequency: Central 3.5 MHz Min. 2.0 MHz Max. 5.5 MHz Pitch:                  0.516 mm Radius:              60 mm	Min. 2.0 MHz   Max. 5.5 MHz   Made by NDK Japan
Touch Screen Size (Diagonal):	10”	Linear Array Probe:
Contrast Ratio: Resolution: Brightness: Grey Levels: Input Signal:	600:1 800×600 pixels 250 cd/m2 64 DVI	Frequency: Central 7.5 MHz Min. 6.0 MHz Max. 12.0 MHz Pitch:              0.352 mm Radius:          N/A

Standard:

Power Cable  ............................... 1Pcs
Cleaning Cloth  ............................ 1Pcs

Options:

CW Doppler and “Free Xros™ Imaging “(for cardiac applies) module

Smart 3D module (for 3 dimensions with 2D standard convex probe)

“iScape View” module

DICOM 3.0 module

Foot switch by USB port

Probes:
Micro-convex array Transvaginal Probe

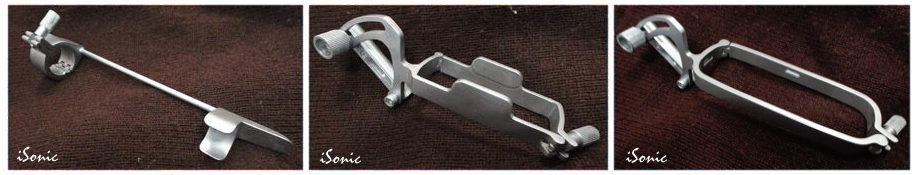

Biopsy guide:
Biopsy guide for convex probe

Biopsy guide for micro-convex probe

Biopsy guide for linear probe

Biopsy guide for micro-convex TV probe

Biopsy guide for intrarectal linear probe
